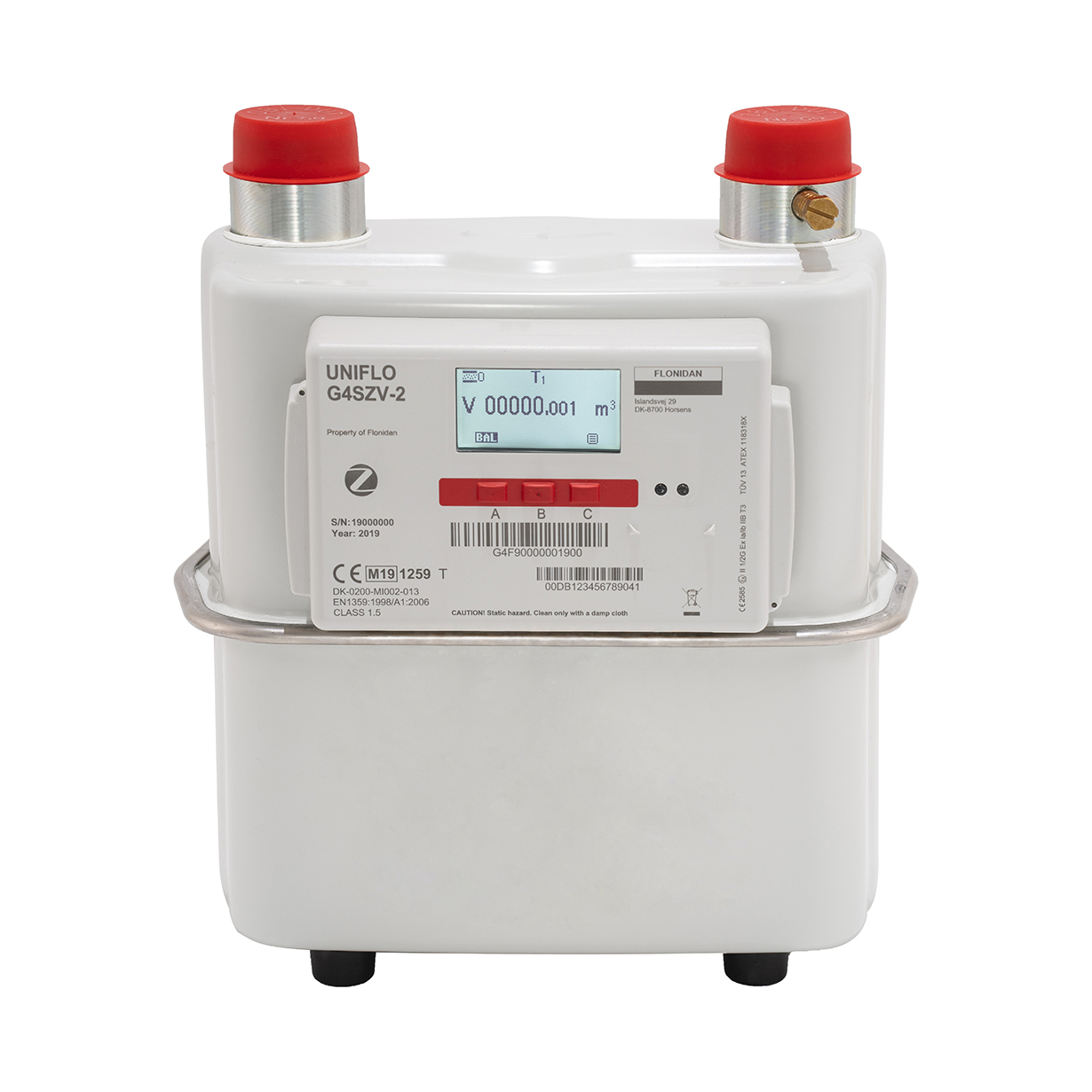

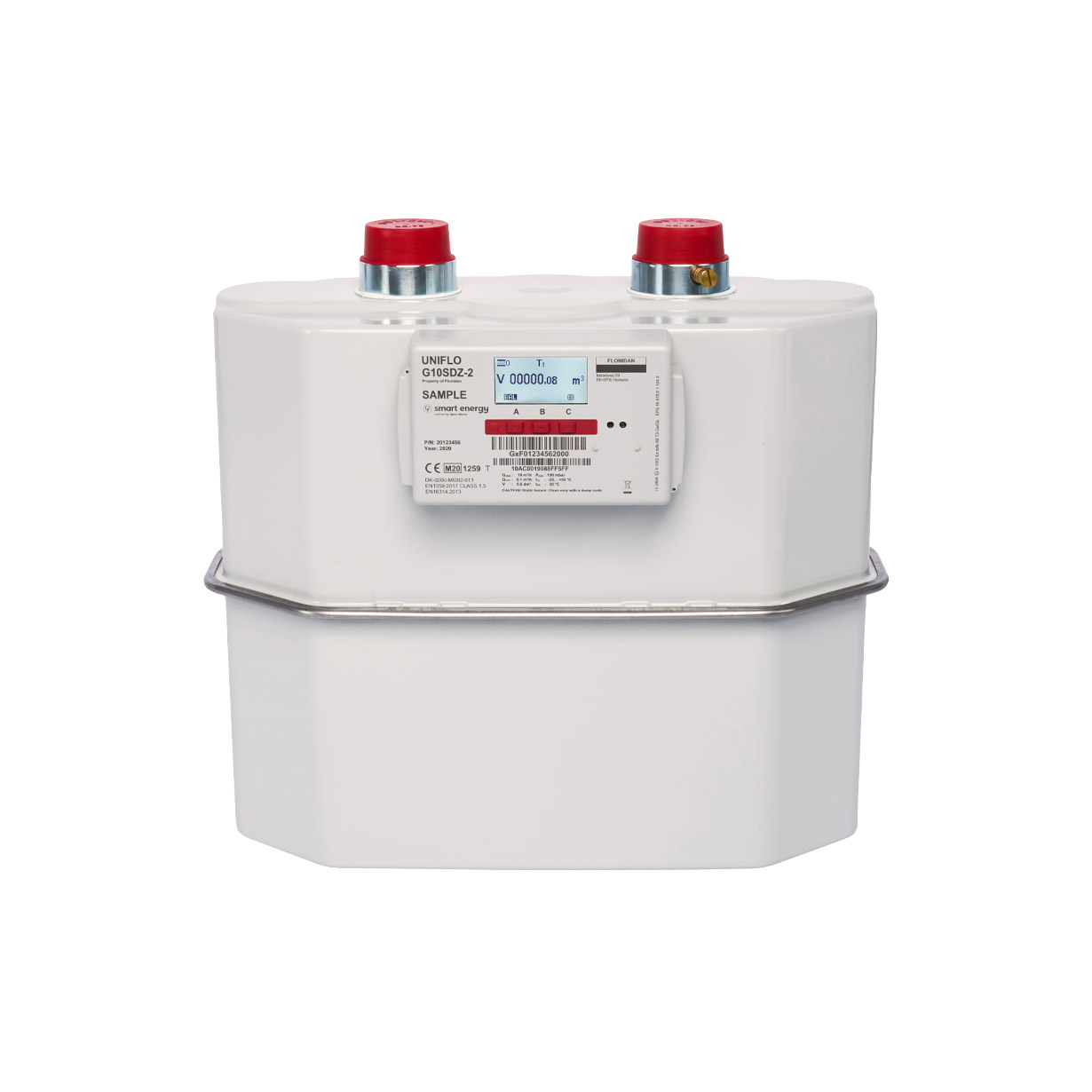

Diaphragm Smart Gas Meters

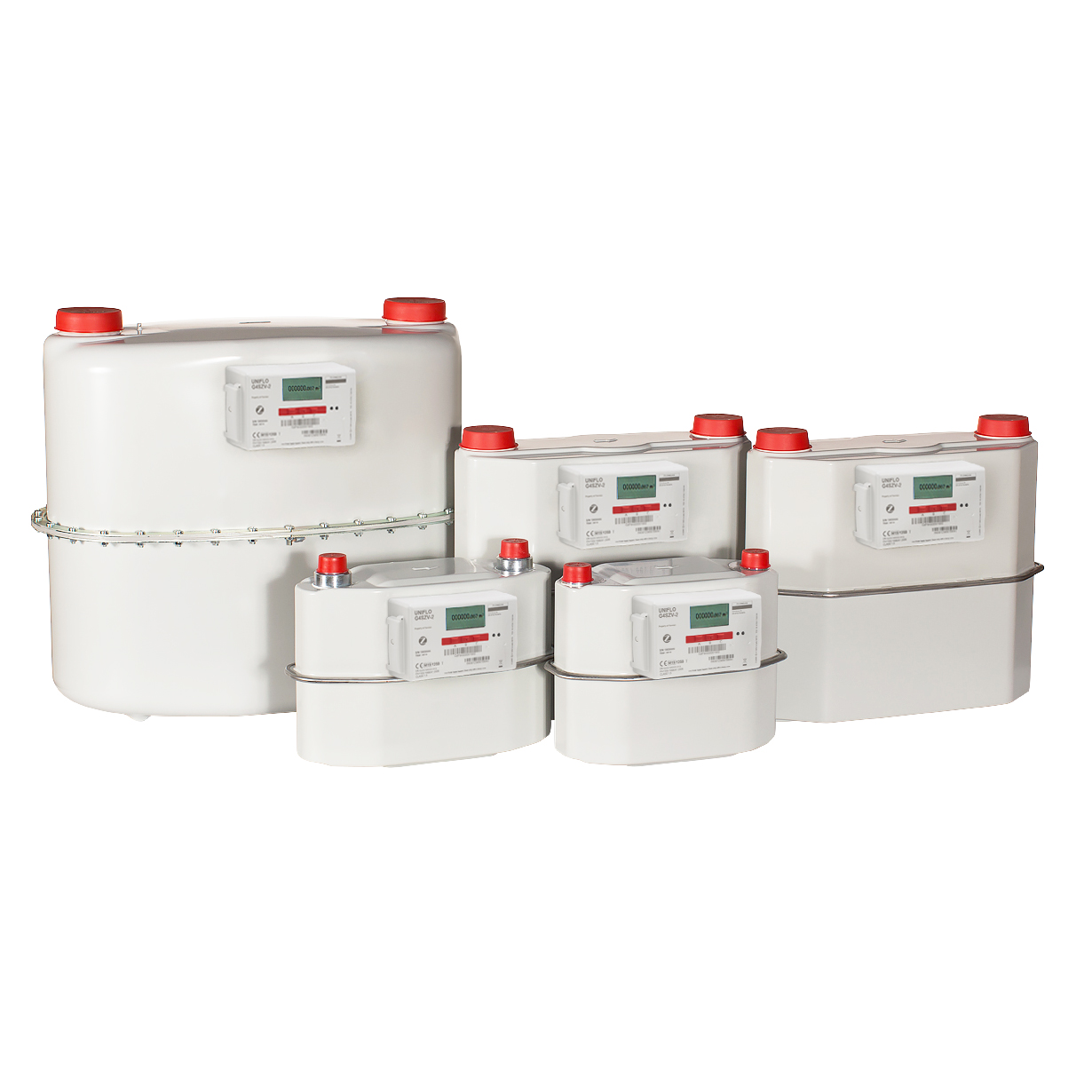

UniFlo® is a range of diaphragm smart gas meters, covering from G4 to G25.
This highly advanced Smart Gas Meter is characterized by a high level of functionality, low power consumption, excellent reliability and high flexibility for customized solutions. It offers the advanced function of C&I gas volume converters in both residential and C&I Smart Gas Metering.
| Name | Type | Qmax | Qmin | Valve | V | pMax | Connections | Piping | |
|---|---|---|---|---|---|---|---|---|---|
| UniFlo® | G4 | 6 | 0,04 | Yes | 1,2 | 0,5 | G5/4" | Two-pipe | |
| UniFlo® | G4 | 6 | 0,04 | Yes | 1,2 | 0,2 | G2" | Mono-pipe | |
| UniFlo® | G4 | 6 | 0,04 | Yes | 2,2 | 0,5 | G2" | Mono-pipe | |
| UniFlo® | G4 | 6 | 0,04 | Yes | 1,2 | 0,075 | BS1" | Two-pipe | |
| UniFlo® | G4 | 6 | 0,04 | No | 1,2 | 0,2 | G3/4 | Two-pipe | |
| UniFlo® | G4 | 6 | 0,04 | No | 2,2 | 0,5 | G5/4" | Two-pipe | |
| UniFlo® | G6 | 10 | 0,06 | No | 2,2 | 0,2 | G3/4" | Two-pipe | |
| UniFlo® | G6 | 10 | 0,06 | No | 2,2 | 0,5 | G5/4" | Two-pipe | |
| UniFlo® | G6 | 10 | 0,06 | Yes | 2,2 | 0,2 | G2" | Mono-pipe | |
| UniFlo® | G10 | 16 | 0,1 | No | 5,6 | 0,5 | G2" | Two-pipe | |
| UniFlo® | G10 | 16 | 0,1 | No | 5,6 | 0,075 | BS5/4" | Two-pipe | |
| UniFlo® | G16 | 25 | 0,16 | No | 5,6 | 0,5 | G2" | Two-pipe | |
| UniFlo® | G25 | 40 | 0,25 | No | 11,2 | 0,5 | G2½" | Two-pipe |
